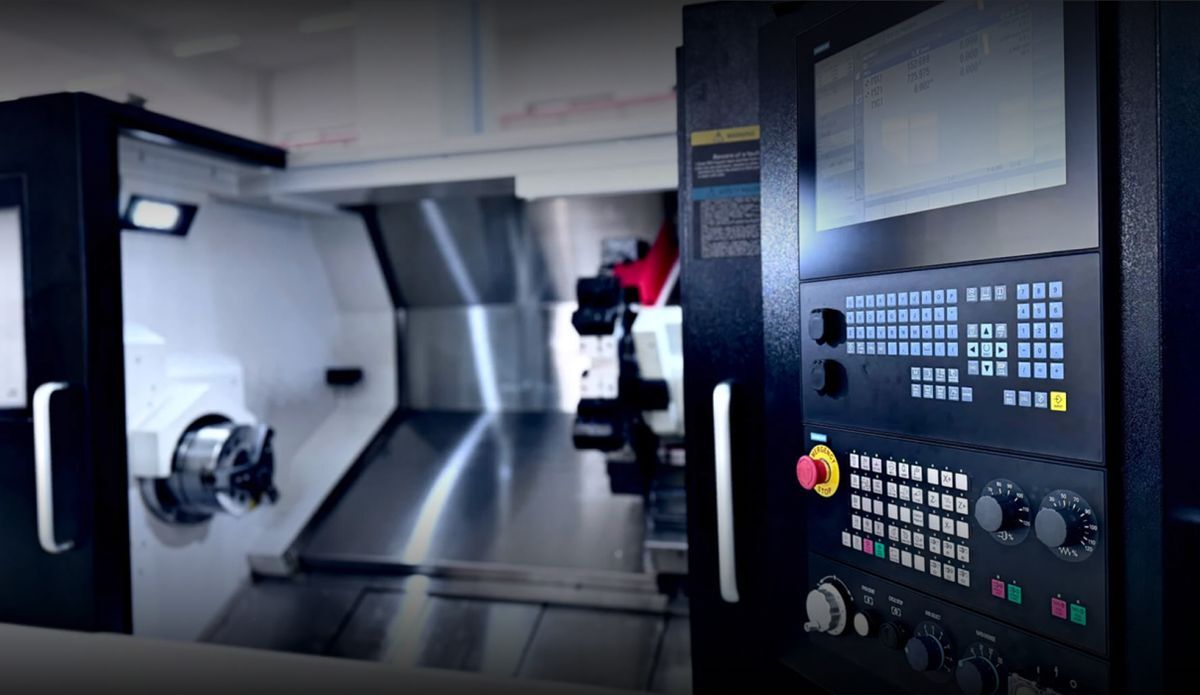

SYIL dan Siemens
SYIL L4 dilengkapi dengan Siemens SINUMERIK 828D sebagai standar. Dengan kinerja CNC yang unik, kontrol SINUMERIK 828D menetapkan standar produktivitas dalam hal penggilingan pada mesin SYIL. Dengan penggerak SINAMICS dan motor kontrol gerak SIMOTICS yang baru, SINUMERIK 828D kini menjadi lebih produktif. Arsitektur perangkat keras yang tangguh dan algoritma kontrol cerdas, bersama dengan teknologi penggerak dan motor berkualitas tinggi, memastikan dinamika dan presisi maksimum selama pemesinan.
.png?width=5760&name=Mask%20group%20(22).png)
Enhance Your Precision Machining with SYIL CNC Lathes
The SYIL L Series high-performance turning centers are designed to deliver unparalleled setup flexibility, extreme rigidity, and exceptional thermal stability. These machines lead the industry in performance-to-price ratio, offering unbeatable value in their class.
.png?width=5760&name=Mask%20group%20(32).png)
.png?width=5760&name=Mask%20group%20(33).png)

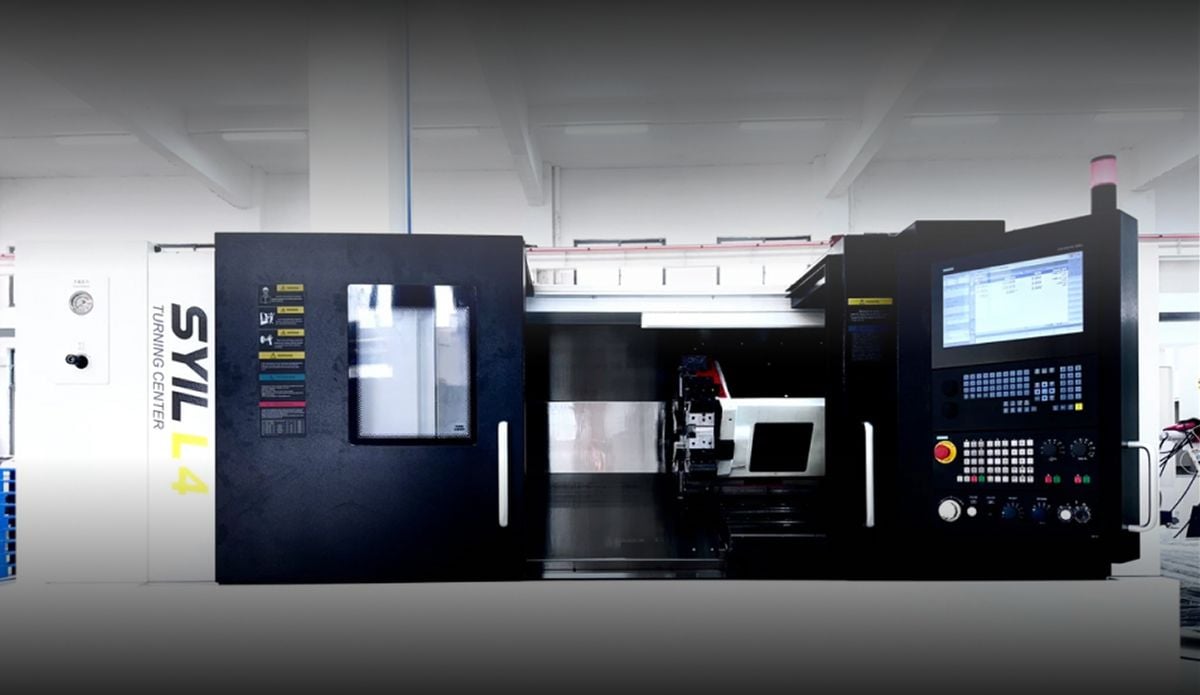

Mesin Bubut Produktivitas Tinggi
Pusat pembubutan SYIL L4: pemesinan CNC berkinerja tinggi untuk komponen besar.
.png?width=5760&name=Mask%20group%20(36).png)
Spesifikasi Teknis
L2
L3
L4
Processing Capacity
Chuck size
8"
8"
--
Max. swing diameter over bed
ø510 mm
ø550 mm
--
Max. swing diameter over carriage
ø20.1" (ø510mm)
ø11.4" (ø290mm) (with Y axis: 7.9" or 200mm)
--
Max. workpiece Length
11.8" (300mm)
19.7" (500mm) (with Y axis: 20.9" or 530mm, with Counter Spindle: 17.7" or 450mm)
--
Max. work piece diameter
ø15" (ø380mm)
ø15" (ø380mm)
--
Spindle
Max speed
4000rpm
4000rpm
--
Spindle nose
A2-6
A2-6
--
Spindle bore diameter
ø2.6" (ø66mm)
ø2.5" (ø63mm)
--
Through spindle bore diameter
ø2" (ø52mm)
ø2" (ø52mm)
--
Spindle power
11/15kW
11/15kW
--
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6"
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø2.2" (ø56mm)
--
Through spindle bore diameter
--
ø1.8" (ø45mm)
--
Spindle power
--
11kW
--
Travels
--
530m
X-axis (mm)
Rapid traverse
--
1181.1ipm (30m/min)
--
Tool Holder
Type
Servo turret

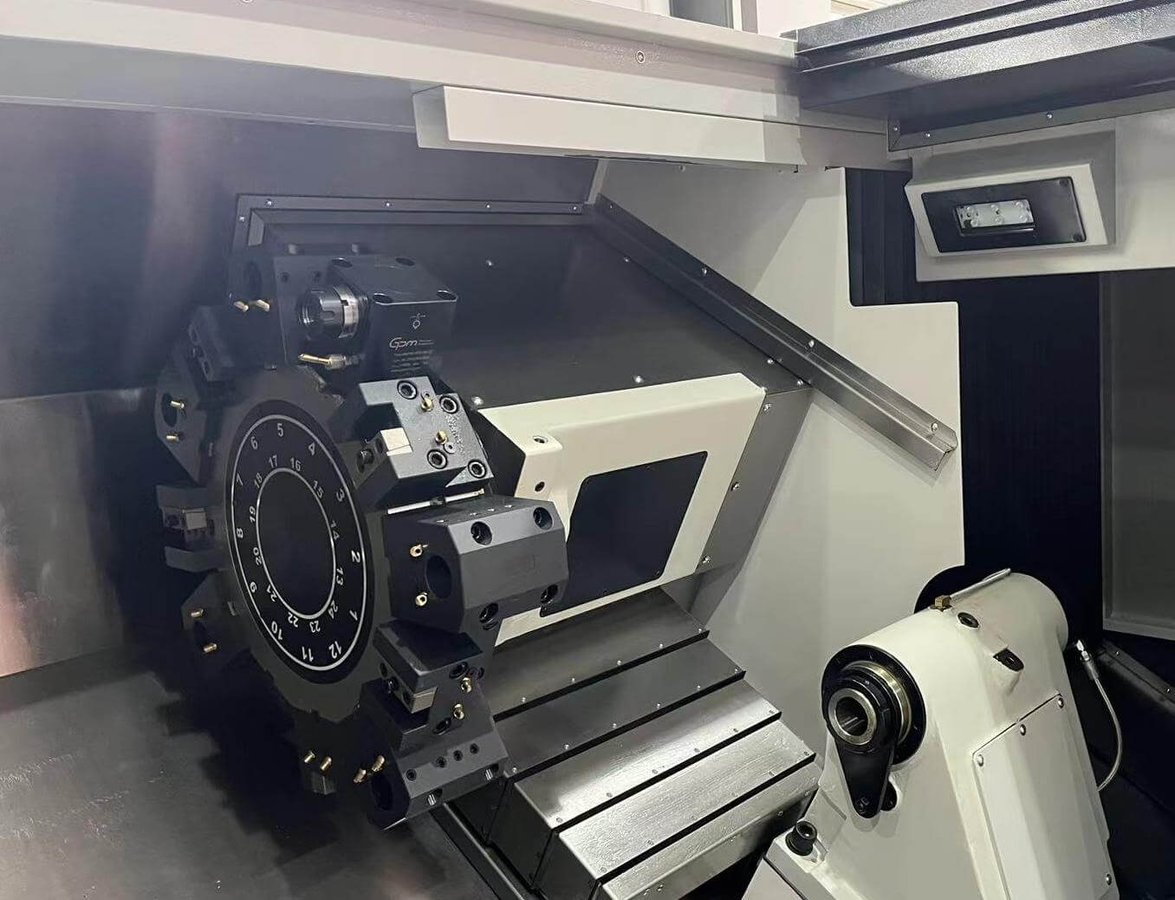

Power Turret
--
Tools
8/12
12
--
Tool shank size
0.98x0.98"/0.79x0.79" (25x25/20x20mm)
0.98x0.98" (25x25mm)
--
Tool shank diameter
ø1.6"/ø1.3" (ø40/ø32mm)
ø1.6" (ø40mm)
--
Min. Tool to Tool
--
0.2s
--
Max. Tool to Tool
--
0.5s
--
Max. Live Tooling Speed
--
5000rpm
--
X-axis (mm)
Travels
X Rapid traverse
1181.1ipm (30m/min)
1181.1ipm (30m/min)
--
X Travels
7.9" (200mm)
190+10mm
---
Z Travels
14.2" (360mm)
550mm (with Y axis: 490+-50mm)
--
Y Rapid traverse
--
590.6ipm (15m/min)
--
--
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
--
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
--
Finished turning parts roundness
≤0.003mm
≤0.003mm
--
Position accuracy(Ｘ)
0.005mm
0.005mm
--
Position accuracy(Ｚ)
0.008mm
0.008mm
--
Repeat accuracy (Ｘ)
0.002mm
0.002mm
--
Repeat accuracy(Ｚ)
0.004mm
0.004mm
--

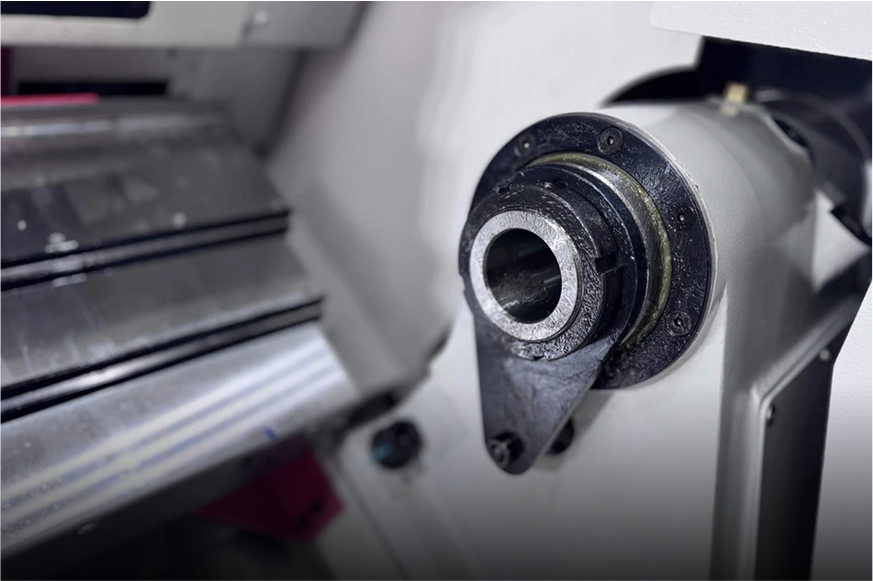

Tail Stock
Travels from Tail Stock to Chunk
--
18.3" (465mm) (with Y axis: 19.7" or 500mm)
--
Tail Stock Rapid Traverse
--
1181.1ipm (30m/min)
--
Sleeve taper
--
MT4
--
Dimensions and Weight
Dimensions(LxWxH)
70.1"x63"x66.6" (178x160x169cm)
98.4"x67.7"x68.5" (250x172x174cm)
--
Net Weight
6724lb (3050kg)
8818lb (4000kg)
--
